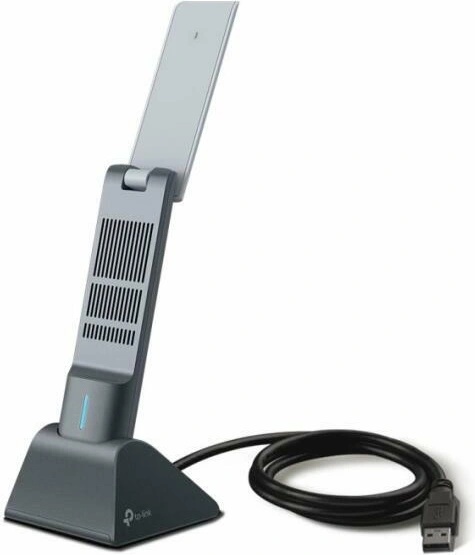

Archer TX20UH

AX1800 High Gain Wireless USB Adapter

• Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).


• Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity.


• Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming.


• Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.


• Improved Security - WPA3 provides the latest security enhancements for personal password protection.


• SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0,







Upgrades Your PC with Wi-Fi 6

Forget about buying a new PC. TX20UH delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.





USB 3.0 for Superior Transfer Speeds

Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads.





Easy Use with a Flexible Design

A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.





БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ

Безжични стандарти
IEEE 802.11a/b/g/n/ac/ax

Скорост на сигнала
5 GHz:

11ax: Up to 1201 Mbps(dynamic)

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz:

11ax: Up to 574 Mbps(dynamic)

11n: Up to 400 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

Предавателна мощност
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)

2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)

Безжични режими
Infrastructure mode

Безжична сигурност
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

ДРУГИ

Сертификати
FCC, CE, RoHS

Съдържание на пакета
AX1800 High Gain Wireless USB Adapter Archer TX20UH

Quick Installation Guide

USB 3.0 Cradle

Системни изисквания
Supported operating systems include Windows 10, 11

Околна среда
Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ

LED
Status

Размери
30.5 × 14.8 × 111.7 mm (1.2 × 0.58 × 4.4 in)

Антена
2× High-Gain Dual-Band Antennas



Продукт известен още и като Archer TX 20 UH, ArcherTX20UH, Archer TX20 UH
