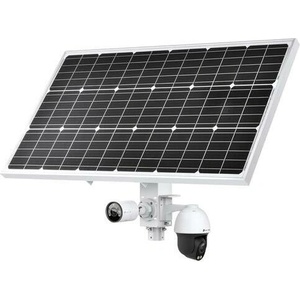

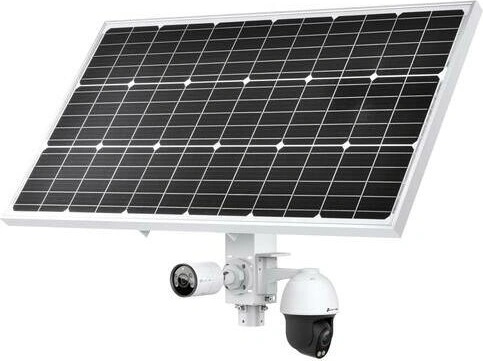

VIGI SP9030 VIGI Intelligent Solar Power Supply System

• 90W Photovoltaic Panel and 30Ah/10.8V Lithium Battery
Modular Design
• 5°/15°/25°/35°/45°/5 5° Adjustable Angles
• Intelligent Auxiliary Heating Technology
• Maximum Power Point Tracking (MPPT) Charging Controller
• IP66 Weatherproof
• Remote Management
• Simple Installation

     Intelligent Auxiliary Heating Technology The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.    Solar Panel (Photovoltaic Panel)Power 90 WVoltage 18 VDimensions (L x W x H) 998×516×30 mm (39.3×20.3×1.2 in)BatteryType LithiumIntelligent Auxiliary Heat YesBattery Capacity  31.2 AhVoltage 10.8 VMax. Output Voltage 12.6 VLife More than 500 cyclesDimension 250×74×74 mm (9.8×2.9×2.9 in)Charging Condition0°C~45°C
-30°C~45°C (With intelligent auxiliary heating)Discharging Condition-20°C~60°C
-30°C~60°C (With intelligent auxiliary heating)Angle Adjustment (Manual)Range 5°/15°/25°/35°/45°/55°HARDWAREInte rface1× 10/100 Mbps RJ45
1× Photovoltaic Panel Connector
3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)Indicator LEDQuantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
Color: BlueSOFTWARE FEATURESLoad Control YesHigh and Low Temperature Protection YesOverdischarge Protection YesPower Consumption Statistics YesDisplays Real-time Load Status YesBattery Level Display YesTime Zone Selection YesRegion Selection YesSchedule Saving YesFirmware Remote Update YesRemote Reboot YesLocal LAN Management YesSmart Charging Control -30°C~5°CAccount Management YesWeb Management YesRemote Reset YesRemote Message Push YesOTHERSCertificationCB, PSE (Battery)
CE, FCC, VCCI, IC, IP66Box Dimensions (W X D X H) 1110×615×225 mm (43.7×24.2×8.9 in)WeightProduct Weight: 15 kg
Package Weight: 17.5 kgEnvironmentOperating Temperature: -30°C-60°C (With intelligent auxiliary heating)
Operating Humidity: 10%~90%RH, Non-condensing

Продукт известен още и като SP 9030
